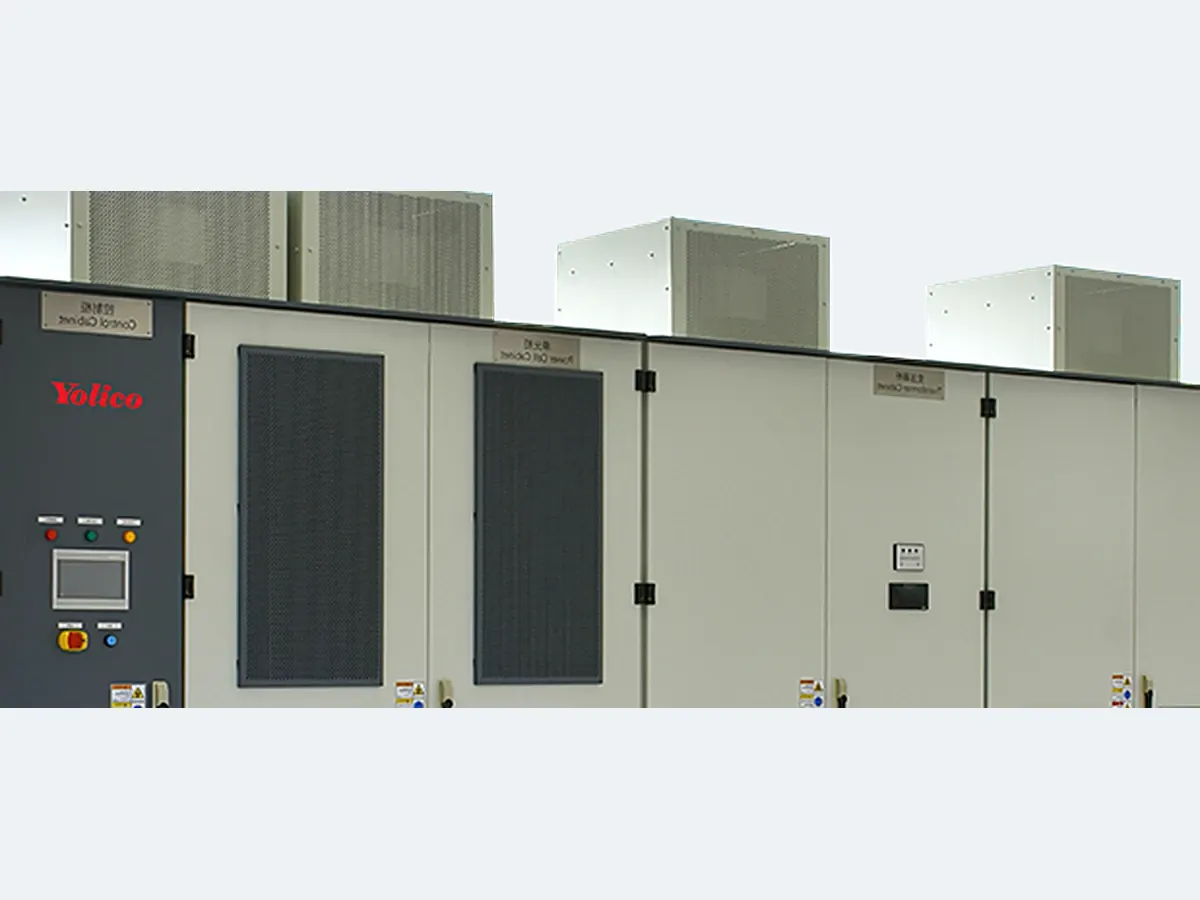

YD1000 Medium & High Voltage VFD 3–11 kV, 400–20000 kW
The YD1000 medium- and high-voltage variable frequency drive (VFD) covers 400–20000 kW at 3–11 kV for large motors in power, mining, cement and water plants. It offers V/f, open-loop and closed-loop vector control, air, water and liquid-air cooling, and IP21 / IP54 protection.
| Voltage range | 3 kV – 11 kV |
|---|---|
| Power range | 400 kW – 20000 kW |
| Control mode | V/f, open-loop & closed-loop vector |
| Cooling | Air / water / liquid-air |
| Protection rating | IP21 / IP54 |
| Applications | Fans, pumps, compressors, belt conveyors, hoisting |
Product Description
The YD1000 moves the very large motors that low-voltage drives cannot serve. With a 3 kV to 11 kV voltage range and 400 kW to 20 MW of power, it drives fans, pumps, compressors, belt conveyors and hoisting equipment in power stations, mines, cement lines and water works.
A multi-level topology delivers clean output with low dv/dt, protecting motor insulation and reducing bearing currents. V/f, open-loop vector and closed-loop vector control modes match the load, while air, water or liquid-air cooling and IP21 / IP54 enclosures adapt the drive to the switchroom environment and the site climate.
Key Features
- Voltage range 3 kV to 11 kV
- Power range 400 kW to 20000 kW (20 MW)
- V/f, open-loop and closed-loop vector control
- Air, water and liquid-air cooling options
- IP21 / IP54 protection
- Drives induction and PM synchronous motors
FAQ about YD1000
Which voltage classes are available?
The YD1000 covers the 3 kV to 11 kV range, matching the common medium- and high-voltage motor classes. Share your motor nameplate voltage, power and process curve and we size the converter within 24 hours.
How is the drive cooled in a hot plant?
Air, water and liquid-air cooling options let you match the drive to ambient temperature and available utilities. Tell us the site conditions and we specify the cooling method and enclosure rating.
Do you support EPC projects?
Yes. We support EPC contractors and plant engineers with single-line diagrams, commissioning and spare-part plans. Request a quote for factory pricing on your high-voltage package.
Related product range
High Voltage VFDOrdering Information
Standard export terms for this range. Send your motor nameplate or equipment list and we confirm the exact model, price and lead time.
- Minimum order quantity (MOQ)
- Made to order — quantity confirmed per project
- Standard packaging
- Carton and plywood case packaging
- Delivery period
- Made to order — lead time confirmed per project
- Payment method
- L/C, D/A, D/P, T/T, Western Union
- Supply capacity
- Made to order — capacity confirmed per project
- Place of origin
- Wuxi, Jiangsu, China
Plywood cases are ISPM 15 exempt — no fumigation certificate is required at destination.
