YD3000N-CCS Marine VFD 1.5–630 kW

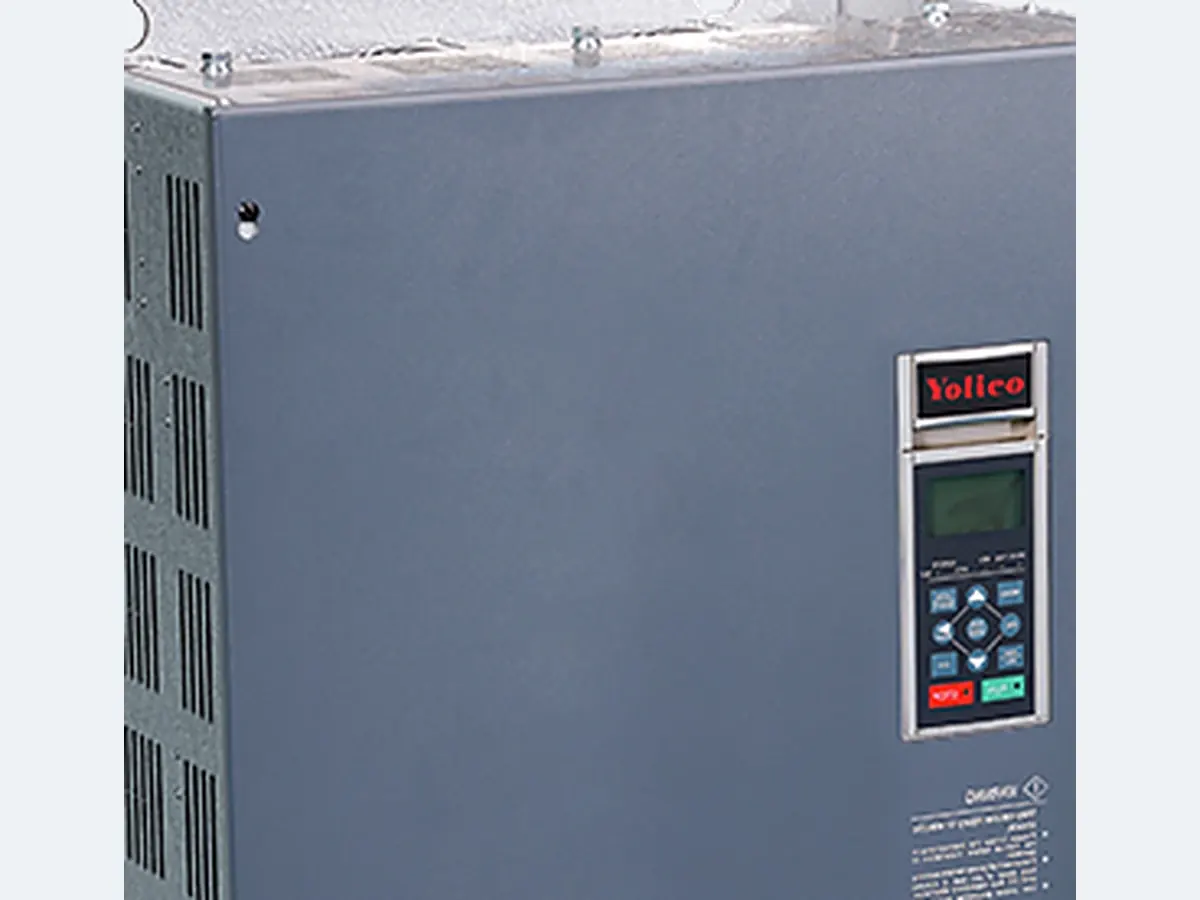

The YD3000N-CCS is a marine-duty variable frequency drive (VFD) rated 1.5–630 kW at 380 V three-phase, with V/f, SVC and FVC control. It carries marine classification-ready options and drives propulsion, hoisting, pumps and fans on board.
Power: 1.5–630 kWVoltage: 380V 3PHControl: V/f + SVC + FVC
| Power range | 1.5–630 kW |
|---|---|
| Input voltage | 380 V 3-phase |
| Control mode | V/f, SVC, FVC |
| Keypad | LCD, local / remote |
| Motor type | Asynchronous induction |
| Options | RS485 card, optical PG encoder card |
Product Description
The YD3000N-CCS applies Yolico drive technology to marine equipment. Rated 1.5–630 kW at 380 V three-phase, it runs V/f, open-loop vector (SVC) and closed-loop vector (FVC) control on asynchronous induction motors.
A marine-oriented option set adds RS485 communication cards and optical PG encoder cards for feedback and remote control, and the LCD keypad supports both local and remote operation. Typical duties include propulsion, hoisting, pumps and fans.
Key Features
- Marine-duty drive for on-board equipment
- 1.5–630 kW at 380 V three-phase
- V/f, SVC and FVC control
- RS485 communication and optical PG encoder cards (option)
- LCD keypad, local and remote control
- Propulsion, hoisting, pump and fan duties
FAQ about YD3000N-CCS
What marine duties is the YD3000N-CCS used for?
It drives propulsion, hoisting, pumps and fans on board. Tell us the motor rating and the duty and we confirm the model and options within 24 hours.
Can it operate with local and remote control?
Yes. The LCD keypad supports local operation and the drive accepts remote commands over RS485 or hard-wired I/O, so it integrates with the vessel control panel.
Do you provide classification documentation?
We supply the technical documents and option cards required for marine projects. Share your class requirements and we confirm the applicable configuration.
Related product range
Dedicated VFDOrdering Information
Standard export terms for this range. Send your motor nameplate or equipment list and we confirm the exact model, price and lead time.
- Minimum order quantity (MOQ)
- 1 set (sample orders accepted)
- Standard packaging
- Carton and plywood case packaging
- Delivery period
- 10 days after order confirmation
- Payment method
- L/C, D/A, D/P, T/T, Western Union
- Supply capacity
- 500–8,000 sets per month
- Place of origin
- Wuxi, Jiangsu, China
Plywood cases are ISPM 15 exempt — no fumigation certificate is required at destination.
