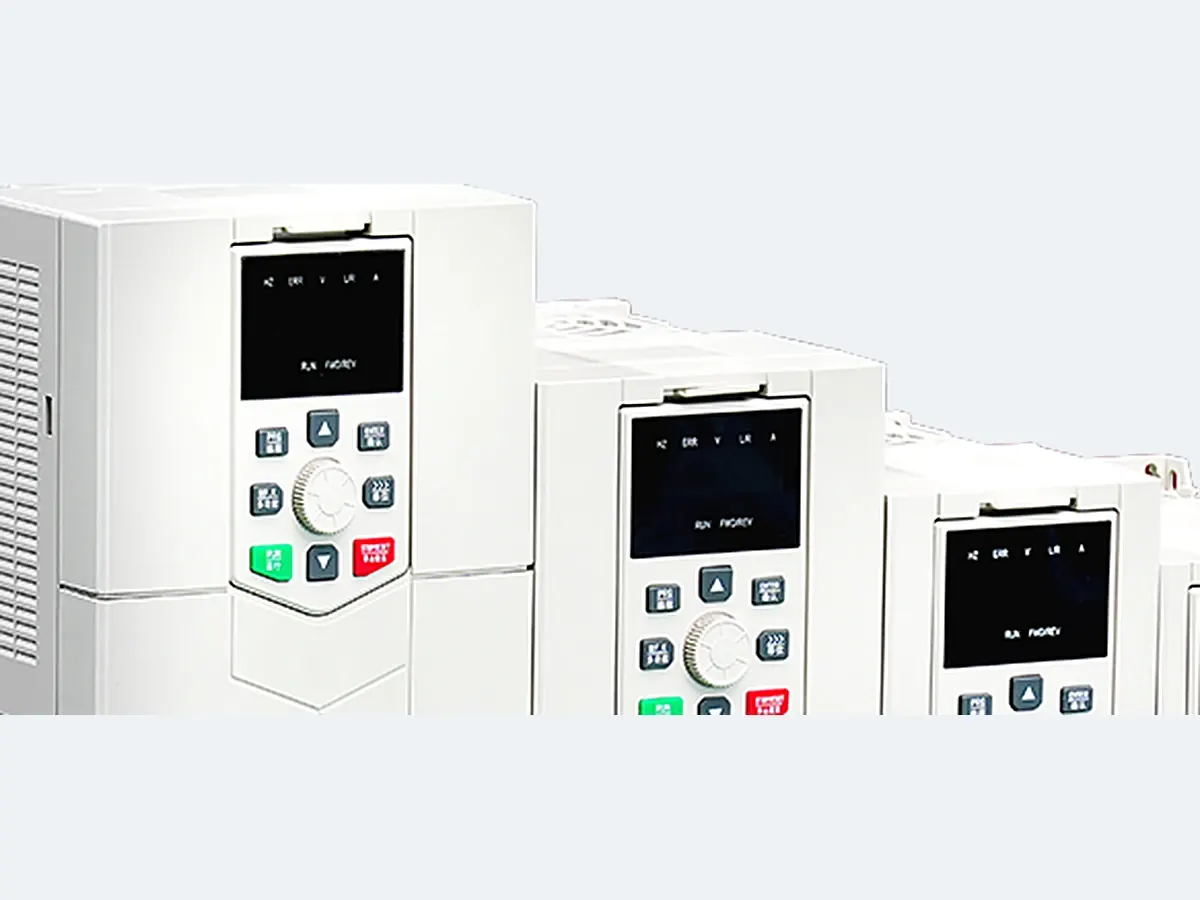

YD280 Standard VFD 0.4–22 kW
The YD280 is a compact standard variable frequency drive (VFD) for small machines, rated 0.4–2.2 kW on single-phase 220 V and 0.75–22 kW on three-phase 380 V. It offers V/f and open-loop vector (SVC) control with 150% overload for 60 seconds.
Power: 0.4–22 kWVoltage: 220V 1PH / 380V 3PHControl: V/f + SVC
| Power range | 0.4–2.2 kW (1PH) / 0.75–22 kW (3PH) |
|---|---|
| Input voltage | 220 V 1-phase / 380 V 3-phase |
| Control mode | V/f, SVC |
| Overload capacity | Heavy 150% 60 s / Light 120% 60 s |
| Motor type | Asynchronous induction |
| Communication | RS485 expansion card (option) |
Product Description
The YD280 brings reliable variable-speed control to small pumps, fans, conveyors and light machinery. Powered from single-phase 220 V (0.4–2.2 kW) or three-phase 380 V (0.75–22 kW), it runs V/f and SVC control on standard asynchronous motors.
An RS485 communication expansion card adds Modbus networking for remote start/stop and monitoring, while the compact DIN-rail-friendly housing fits tight control panels. Built-in PID and multi-speed stages cover most simple process loops.
Key Features
- Single-phase 220 V: 0.4–2.2 kW
- Three-phase 380 V: 0.75–22 kW
- V/f and SVC open-loop vector control
- Heavy-duty 150% overload for 60 s
- RS485 communication expansion card option
- Compact housing for small control panels
FAQ about YD280
Can the YD280 run on single-phase 220 V?
Yes. The YD280 covers 0.4–2.2 kW from single-phase 220 V and 0.75–22 kW from three-phase 380 V. Confirm your supply type and motor power and we select the correct rating.
Does it support remote monitoring?
With the optional RS485 card the drive speaks Modbus, so a PLC or SCADA can start, stop and read parameters. Tell us your supervisory system and we configure the register map.
What is the lead time for small ratings?
Small ratings are typically in stock and ship quickly; customized versions follow our project schedule. Request a quote for the current lead time and factory pricing on your volume.
Related product range
Low Voltage VFDOrdering Information
Standard export terms for this range. Send your motor nameplate or equipment list and we confirm the exact model, price and lead time.
- Minimum order quantity (MOQ)
- 1 set (sample orders accepted)
- Standard packaging
- Carton and plywood case packaging
- Delivery period
- 10 days after order confirmation
- Payment method
- L/C, D/A, D/P, T/T, Western Union
- Supply capacity
- 500–8,000 sets per month
- Place of origin
- Wuxi, Jiangsu, China
Plywood cases are ISPM 15 exempt — no fumigation certificate is required at destination.
