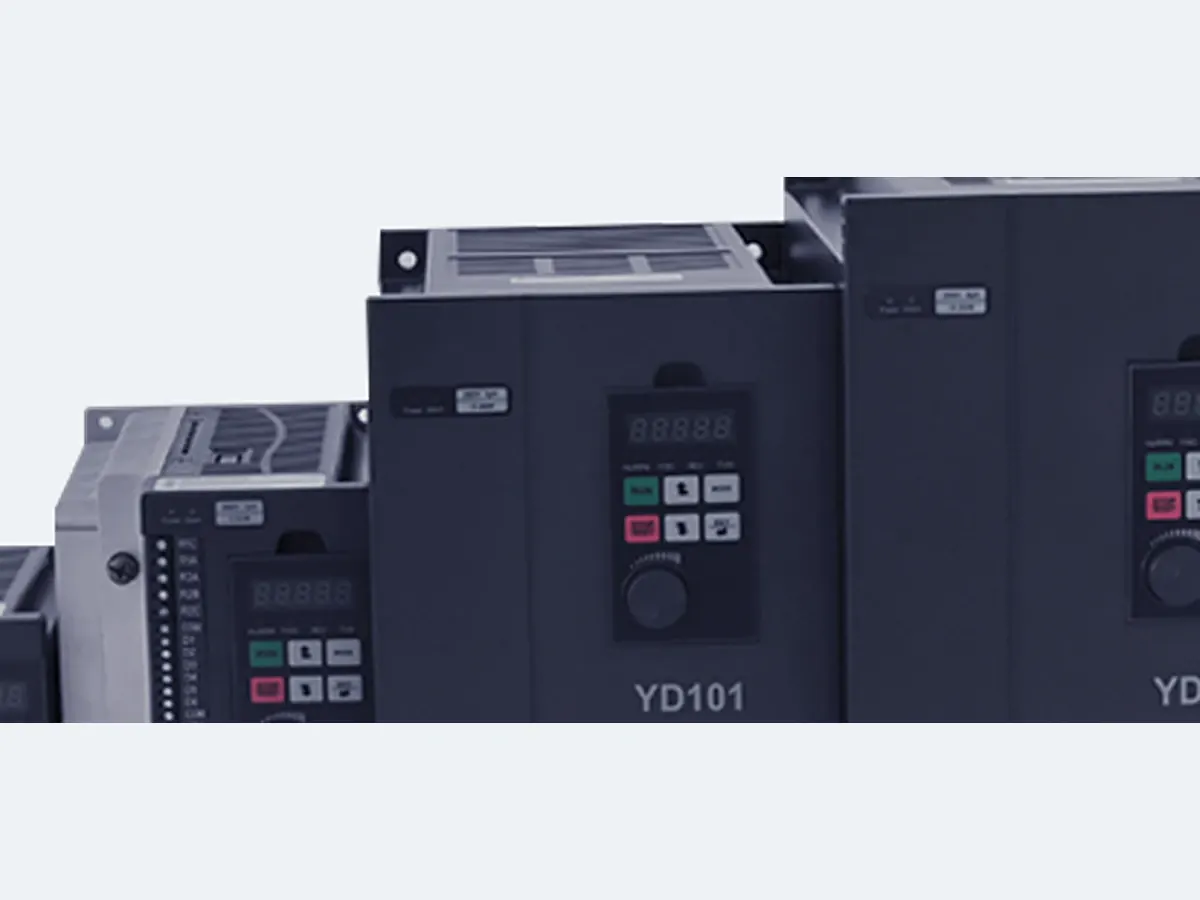

YD101 Vector General Purpose VFD 0.75–22 kW

Name: YD101 Vector General Purpose VFD 0.75–22 kW
Brand: Yolico VFD

The YD101 is a compact general-purpose variable frequency drive (VFD) for small machines, rated 0.75–4 kW on single-phase 220 V and 0.75–22 kW on three-phase 380 V. V/f and sensorless vector control with 150% overload for 60 s cover conveyors, small pumps, fans and packaging machines.

Power: 0.75–22 kWVoltage: 220V 1PH / 380V 3PHControl: V/f + SVC

Request Quote Contact Engineer

YD101 Technical Specifications
Power range	1-phase 220 V: 0.75–4 kW; 3-phase 380 V: 0.75–22 kW
Control mode	V/f + SVC
Overload capacity	150% for 60 s
Motor type	Asynchronous induction
Options	Standard built-in I/O

Product Description

The YD101 brings vector control to the small-drive segment. On single-phase 220 V supplies it covers 0.75–4 kW, and on three-phase 380 V it extends to 22 kW, so one model family serves workshops and small OEM machines regardless of the available supply.

With V/f and sensorless vector (SVC) modes and 150% overload for 60 seconds, the YD101 starts loaded conveyors and mixers without tripping. Simple keypad commissioning keeps installation time short, and the compact book format fits crowded control panels.

Key Features

0.75–4 kW on single-phase 220 V; 0.75–22 kW on 380 V 3-phase
V/f and sensorless vector (SVC) control
150% overload for 60 seconds
For asynchronous induction motors
Compact format for small panels

FAQ about YD101

Can the YD101 run from a single-phase supply?

Yes. On single-phase 220 V the YD101 covers 0.75–4 kW, converting the supply internally to drive a three-phase motor — ideal for workshops without a three-phase outlet.

Which machines suit the YD101?

Small conveyors, packaging machines, mixers, exhaust fans and workshop pumps — loads up to 22 kW where 150% starting torque helps breakaway. Send the motor nameplate and we confirm the frame within 24 hours.
