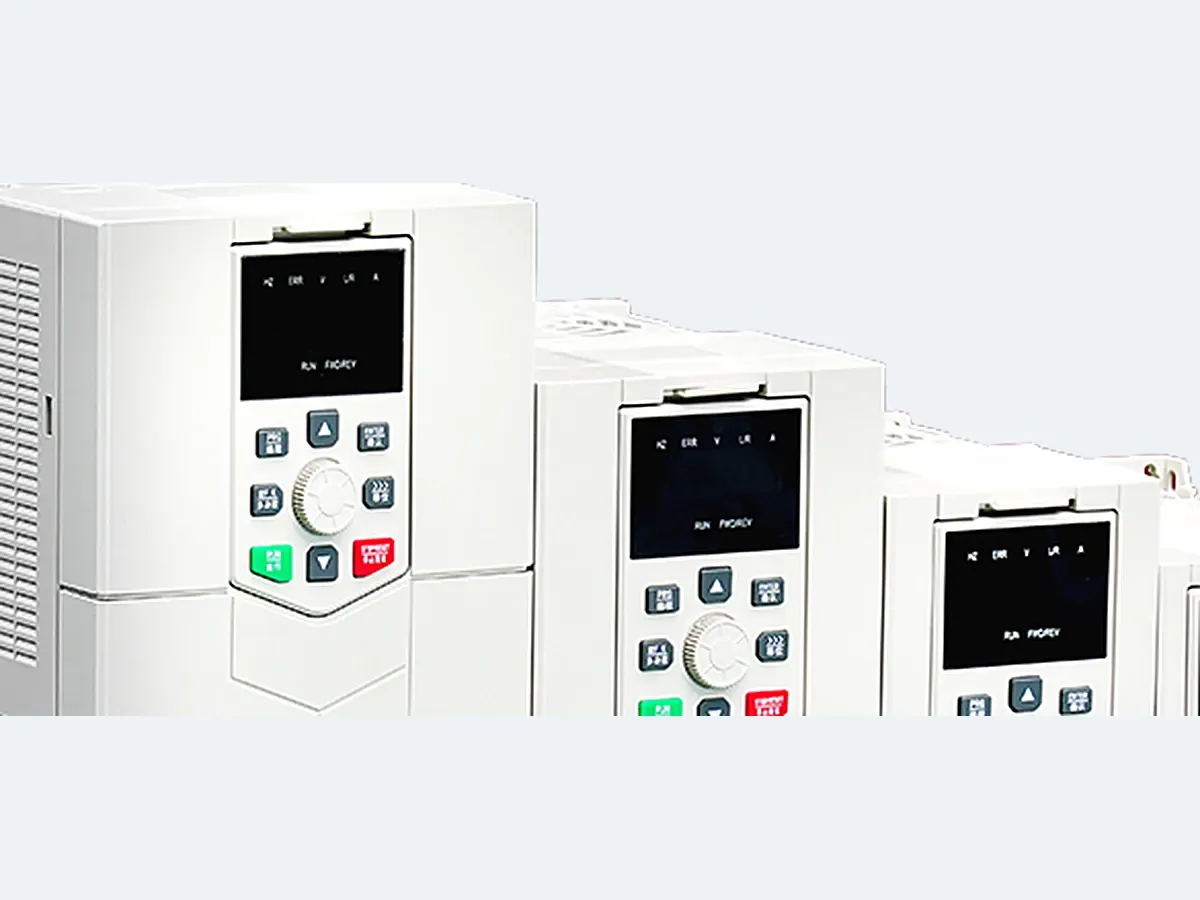

YD280E Synchronous Motor VFD 0.4–22 kW
The YD280E is a compact variable frequency drive (VFD) for small permanent-magnet synchronous motors, rated 0.4–2.2 kW on single-phase 220 V, 0.4–11 kW on three-phase 220 V and 0.75–22 kW on three-phase 380 V. It runs V/f and SVC control with 150% overload for 60 seconds.
Power: 0.4–22 kWVoltage: 220V 1PH / 220V & 380V 3PHControl: V/f + SVC
| Power range | 0.4–2.2 kW (1PH) / 0.4–11 kW (220V 3PH) / 0.75–22 kW (380V 3PH) |
|---|---|
| Input voltage | 220 V 1-phase / 220 V & 380 V 3-phase |
| Control mode | V/f, SVC |
| Overload capacity | Heavy 150% 60 s / Light 120% 60 s |
| Motor type | Permanent-magnet synchronous |
| Communication | RS485 expansion card (option) |
Product Description
The YD280E brings permanent-magnet motor efficiency to small machines. Rated up to 22 kW across single-phase 220 V, three-phase 220 V and three-phase 380 V supplies, it is ideal for compact pumps, fans and light machinery that use PM synchronous motors.
V/f and SVC control with PM auto-tuning make commissioning straightforward, and an RS485 expansion card adds Modbus networking. The compact housing fits the tightest panels while delivering heavy-duty 150% overload for 60 seconds.
Key Features
- Permanent-magnet synchronous motor control
- Single-phase 220 V: 0.4–2.2 kW
- Three-phase 220 V: 0.4–11 kW
- Three-phase 380 V: 0.75–22 kW
- V/f and SVC control with PM auto-tuning
- RS485 expansion card option
FAQ about YD280E
Which PM motors are compatible?
The YD280E supports common permanent-magnet synchronous motors up to 22 kW. Provide the motor rated voltage, current, speed and pole pairs so we preset the parameters before shipment.
Does the YD280E replace the YD280?
They share the same compact platform. Choose the YD280 for asynchronous induction motors and the YD280E when the driven motor is a permanent-magnet synchronous type.
Can I get help selecting the rating?
Yes. Send the motor nameplate and the load duty cycle and our engineers confirm the exact model within 24 hours, including the parameter set.
Related product range
Low Voltage VFDOrdering Information
Standard export terms for this range. Send your motor nameplate or equipment list and we confirm the exact model, price and lead time.
- Minimum order quantity (MOQ)
- 1 set (sample orders accepted)
- Standard packaging
- Carton and plywood case packaging
- Delivery period
- 10 days after order confirmation
- Payment method
- L/C, D/A, D/P, T/T, Western Union
- Supply capacity
- 500–8,000 sets per month
- Place of origin
- Wuxi, Jiangsu, China
Plywood cases are ISPM 15 exempt — no fumigation certificate is required at destination.
